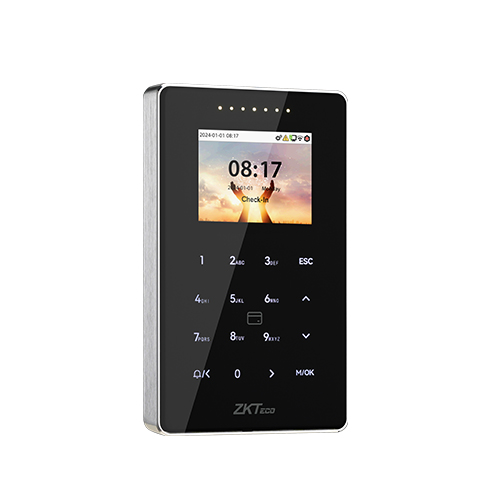

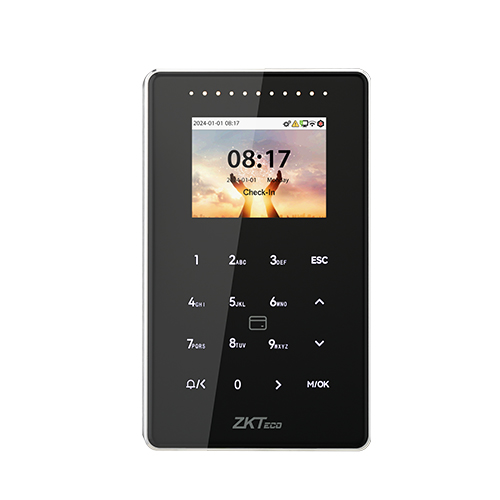

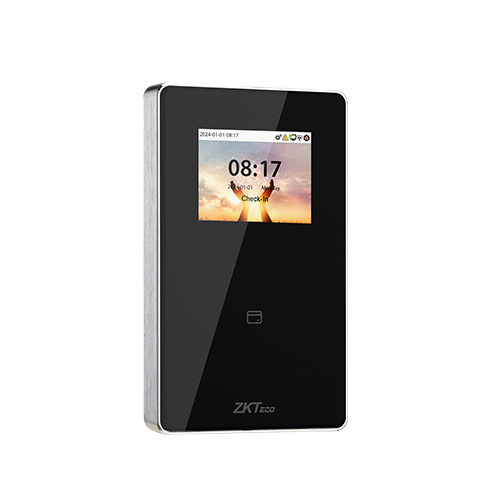

SC800 is a Linux-based and waterproof RFID Access Control terminal that is designed for outdoor application. This terminal adopts a metal midframe housing and a 2.5D tempered glass panel, supporting IP65 waterproof and IK04 vandal proof. Besides, SC800 has a 2.4 inch color screen and a hidden touch keypad to enhance the touchless unlocking experience.
SC800 offers the Multi-tech RFID module that supports 125kHz and 13.56MHz card, support HID Prox and HID iclass Multi-Tech RFID Module. In addition, SC800 supports Access Control push communication protocol and it is compatible with ZKBio CVAccess software. This terminal also includes a Wiegand Input port to connect the external proximity reader and can be act as controller’s external reader using a Wiegand Output port.
Comprehensive and stable software
Comprehensive and stable software
Comprehensive after-sales service coverage
| Display | 2.4 inch TFT LCD Color Screen |
| Operation System | Linux |
| Card Capacity | 50,000 (Optional: 100,000) |
| Logs Capacity | 200,000 (Optional: 1,000,000) |
| User Password | 6 Digits |
| RFID | Standard Module: ID Optional Multi-Tech Card Module: Module 1 Support ID&IC& DESFire EV1/EV2; Module 2 Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox; Module 3 Support ID&IC& DESFire EV1/EV2&Feliac&Legic&HID Prox&HID iclass; |
| Communication | TCP / IP, Wiegand, RS485 (for RS485 readers), OSDP (Ver2.1.7), RS232 (only for printer), Wi-FI (Optional) |
| Wired Network | 10 / 100 Mbps, Auto MDI / MDI-X |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Auxiliary Interface | 1 AUX input |
| Indication Light | Breathing light: White, Status light: Red / Green |
| Hardware | 1GHz Dual Core CPU, DDR2 64M, Flash 256M |
| Data Protection | AES-256 Encryption |
| Keypad | Hidden Touch Keypad |
| Wiegand Signal | Wiegand In / Out |
| Standard Functions | ID card, Web sever, Automatic Status Switch, Self-Service Query, DST, 14 Digit User ID, Scheduled Bell, Anti-passback, HTTPS, Protocol convert (AC push to TA push) |
| Optional Functions | Wi-Fi, Multi-tech Card Module, Printer |
| Power Supply | DC 12V 3A |
| Operating Temperature | -10°C to 55°C (14°F to 131°F) |
| Operating Humidity | 10% to 90% RH |
| Dimensions (L*W*D) | 143*85*19.8 mm |
| Protocol | A & C Push (default) / T&A Push |
| Supported Software | ZKBio CVAccess |
