F18 standard with AC push firmware connect to ZKBio CVAccess, optional standalone firmware, and also optional

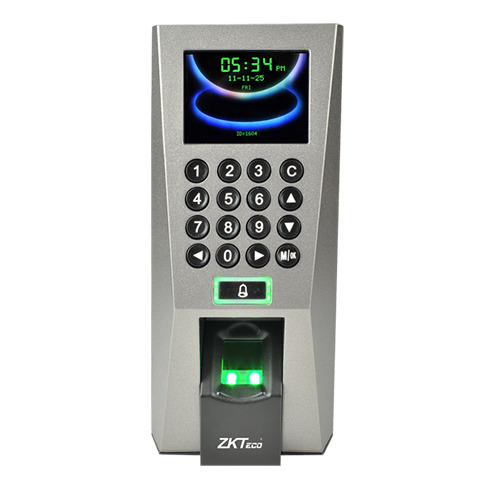

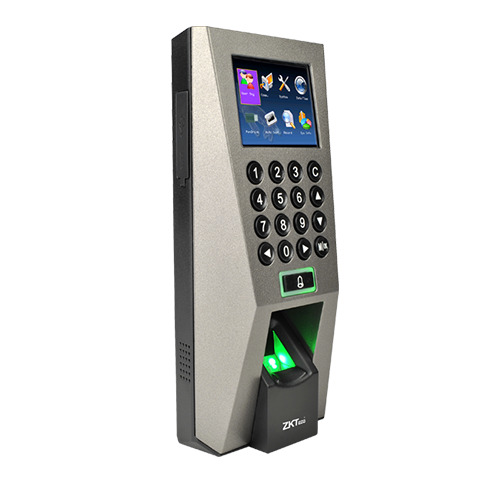

F18 is an innovative biometric fingerprint reader for access control application.With high-performance
firmware functions and compact design, it has become one of ZKTeco’s most popular devices. It is applied
with ZKTeco’s latest firmware with user-friendly UI and flexible user privilege settings for multilevel management. The new hardware platform uses ZMM210 core-board with 1.2Ghz CPU. With
optimization of both hardware platform and firmware, the new f18 is able to verify fingerprints
with even higher efficiency. The device offers flexibility of both standalone installation with any thirdparty access control panels which support standard Wiegand signal. TCP/IP is also available which enable
F18 to be applied in different network.
TA push firmware connect to ZKBio Time.
Comprehensive and stable software
Comprehensive and stable software
Comprehensive after-sales service coverage
| Display | 2.4-inch TFT LCD Color Screen |
| Fingerprint Capacity (optional) | 3,000 |
| Card Capacity | 5000(Optional) ID / IC / HID Prox / HID iclass card |
| Transaction Capacity | 100,000 |
| Sensor | ZK Optical Sensor |
| Algorithm Version | ZK Finger V10.0 |
| Communication | RS232 / 485*, TCP / IP, USB-host |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
| Wiegand Signal | Input, Output, SRB |
| Functions | DST, Record Query, Anti-passback, External RS485 fingerprint reader, Printer(Optional), WIFI(Optional), https(Optional) |
| Power Supply | 12V DC, 3A |
| Operating Temperature | 0 °C – 45 °C |
| Operating Humidity | 20% – 80% |
| SDK and Software | AC push, ZKBio CVAccess / TA push, ZKBioTime8.0 / Standalone SDK, ZKAccess3.5 |
| Dimension | 80 × 183 × 42mm (W*D*H) |
