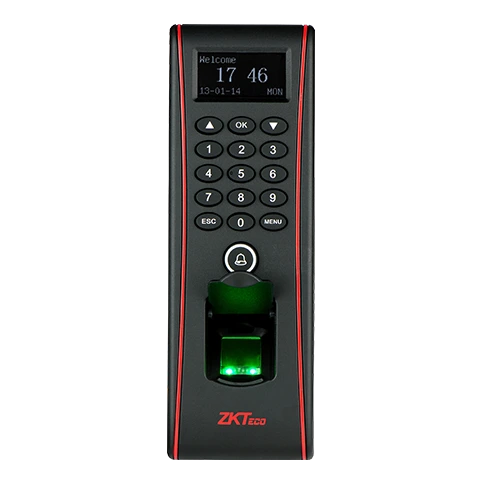

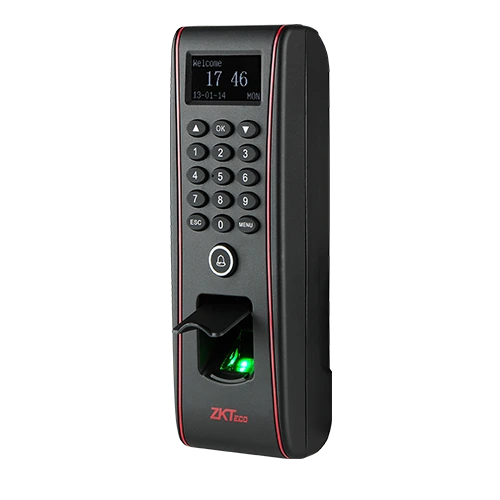

TF1700 is one of the world’s smallest Ethernet connection-based fingerprint
terminals, used for access control and time attendance features, with IP65
waterproof housing.
With its IP65 rated rugged waterproof and dustproof structure, TF1700
offers extra durability in harsh conditions such as outdoor environments. It
is specially designed for standalone applications such as house, office, shop,
garage, factory and others.

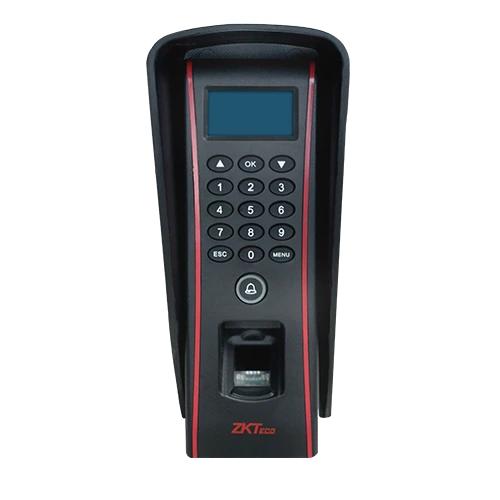

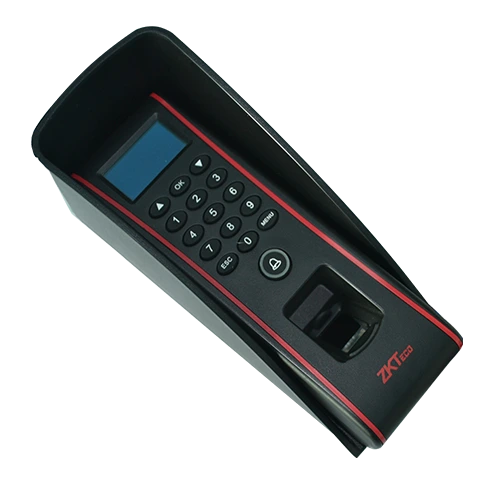

The 2013 version of TF1700 is equipped with a sensor cover to protect the
optical reader and updated with new firmware that supports ZKAccess3.5
management software which has versatile features and powerful functions.
Comprehensive and stable software
Comprehensive and stable software
Comprehensive after-sales service coverage
| Fingerprint Sensor | Infrared detection fingerprint sensor |
| Algorithm Version | ZK Finger 10.0 |
| Communication | TCP/IP, RS485, USB Host |
| Fingerprint Capacity | 3,000 Fingerprints(8,000 Optional) |
| Card Capacity | 10,000 Cards |
| Log Capacity | 50,000 Transactions |
| RF Card | EM(standard)/IC Card(optional) |
| Authentication | Finger/PIN/Card |
| Wiegand Signal | Wiegand input&output |
| Ingress Protection Rate | IP65 |
| Display | 128 x 64 OLED |
| Keypad | 3 x 5 keypads & doorbell |
| Sound and Interface | Buzzer and multi-color LED |
| Operating Voltage | 12VDC 3A |
| Operating Temperature | -10 °C~50 °C (14°F ~ 122°F) |
| Dimension | 62.5mm×185mm×41.5mm (W×H×D) |
