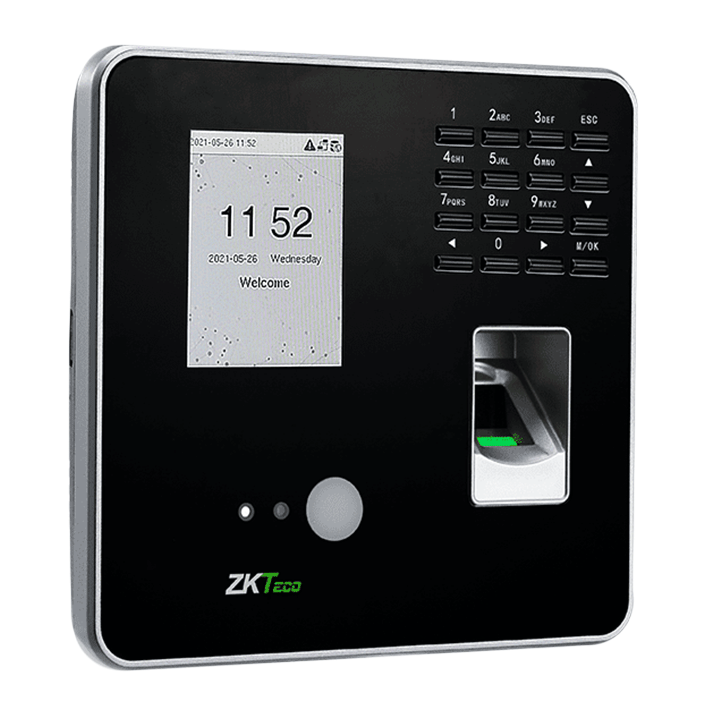

MB20-VL is a touchless multi-biometric identification terminal featuring ZKTeco’s innovative Visible Light Facial
Recognition technology.
With the latest algorithm and Visible Light facial recognition technologies, the device can recognize a target in the
distance from 30cm to 50cm. It will automatically operate when it detects a human face in the detection distance
to deliver better recognition quality in terms of speed and accuracy than the previous near-infrared facial
recognition terminals.
With the applied Deep Learning algorithm, the pose angle tolerance and anti-spoofing ability against the dynamic
environment and various spoofing attacks have been greatly enhanced.
Together with the world’s cutting-edge 3D Neuron Fingerprint Algorithm and comprehensive support in mainstream
card modules, MB20-VL must be the best fit in various working environments satisfying different customer’s needs.
Comprehensive and stable software
Comprehensive and stable software
Comprehensive after-sales service coverage
| Model | MB20-VL |
| Display | 2.8-inch TFT Screen |
| Face Capacity | 100 (Optional:800) |
| Fingerprint Capacity | 500 (Optional:800) |
| Card Capacity | 500 (Optional),Max.800 |
| Transaction Capacity | 50,000 (Optional:150,000) |
| Communication | TCP/IP, USB Host, WiFi (Optional) |
| Standard Function | ADMS, DST, Self-service Query, Automatic Status Switch, T9 Input, Camera, 9-digit User ID, Multiple Verification Methods, Bell Scheduling, SSR |
| Hardware | 1GHz Dual-Core CPU, 256MB RAM/256MB Flash, 1MP Binocular Camera |
| Operating System | Linux |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button |
| Optional Function | 125kHz ID Card (EM) / 13.56MHz IC Card, WiFi |
| Biometric Algorithm | ZKFace 3.5 / ZKFinger V10.0 |
| Biometric Verification Speed | Face: ≤1s |
| Power Supply | 5V 2A (Optional: 12V 1.5A) |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20% to 80% |
| Dimensions | 161.93*152.93*31.50 (mm) |
| Supported Software | Software: ZKBio CVAccess (T&A) Mobile App: ZKBio Zlink Cloud Service: ZKBio Zlink |
Features
· Visible Light facial recognition
· Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
· Multiple verification methods: Face / Fingerprint / Card (Optional) / Password
· Card modules (Optional): 125kHz ID Card (EM) / 13.56MHz IC Card
· TCP/IP network, USB Host and WiFi (Optional)
· Standard with Built-in SSR Excel Software
· Simple access control
