Portable Under-vehicle Scanning System
ZK-VSCN100 is a portable under-vehicle scanning system. It has a great mobility in checkpoints need to be
moved or installations where roads cannot be dug up. ZK-VSCN100 does not need civil construction and can be
installed in 10 minute include wiring. In addition, it is convenient to move and deliver because all components
are able to be stored in a cabinet with wheels.
Comprehensive and stable software
Comprehensive and stable software
Comprehensive after-sales service coverage

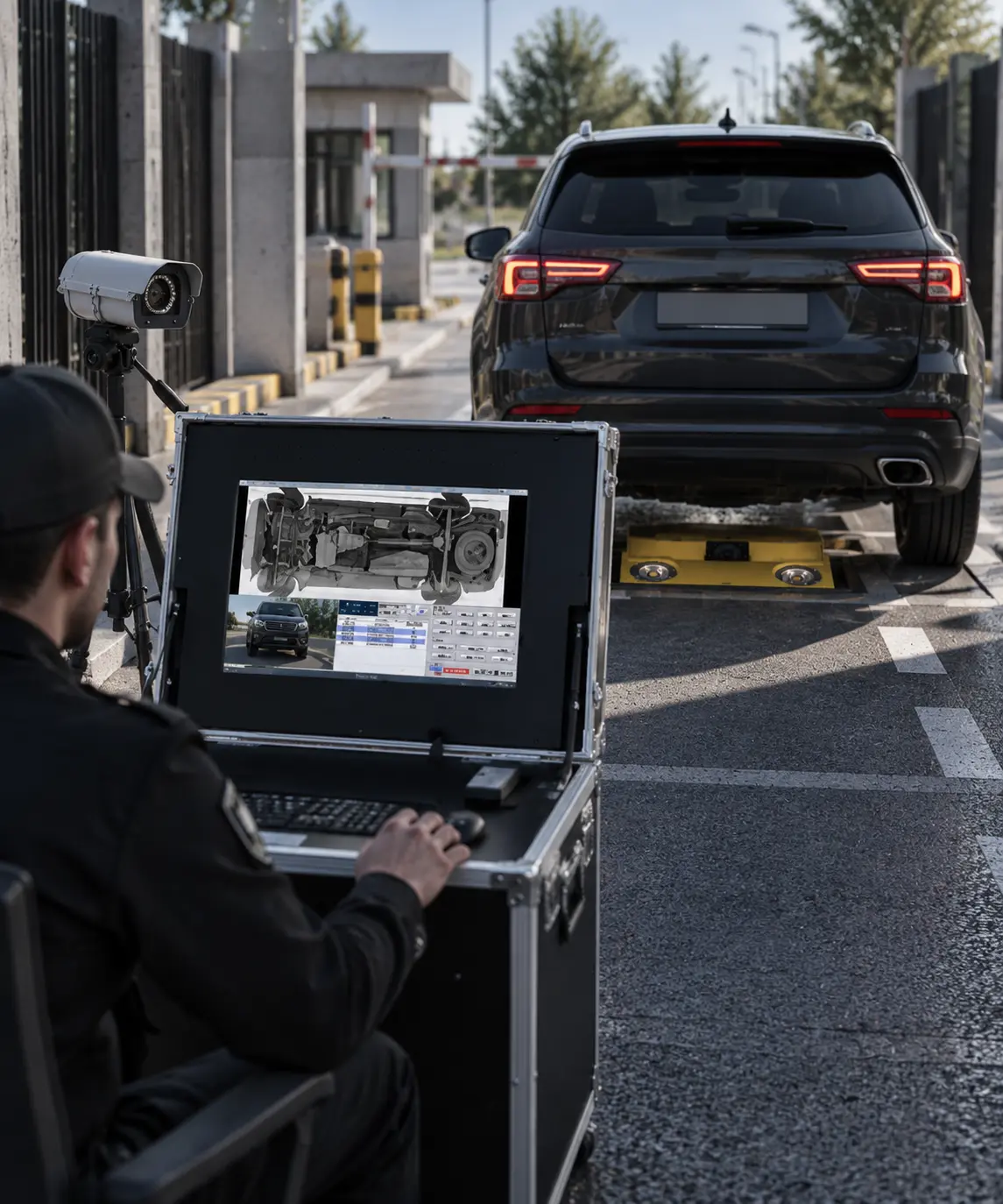

ZK-VSCN100 is a portable under-vehicle scanning system. It has great mobility for checkpoints that need to be moved or installations where roads cannot be dug up. ZK-VSCN100 does not need civil construction and can be installed in approximately 10 minutes including wiring.

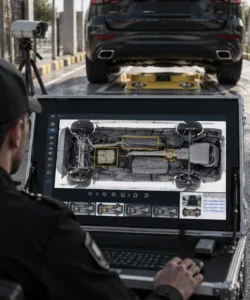

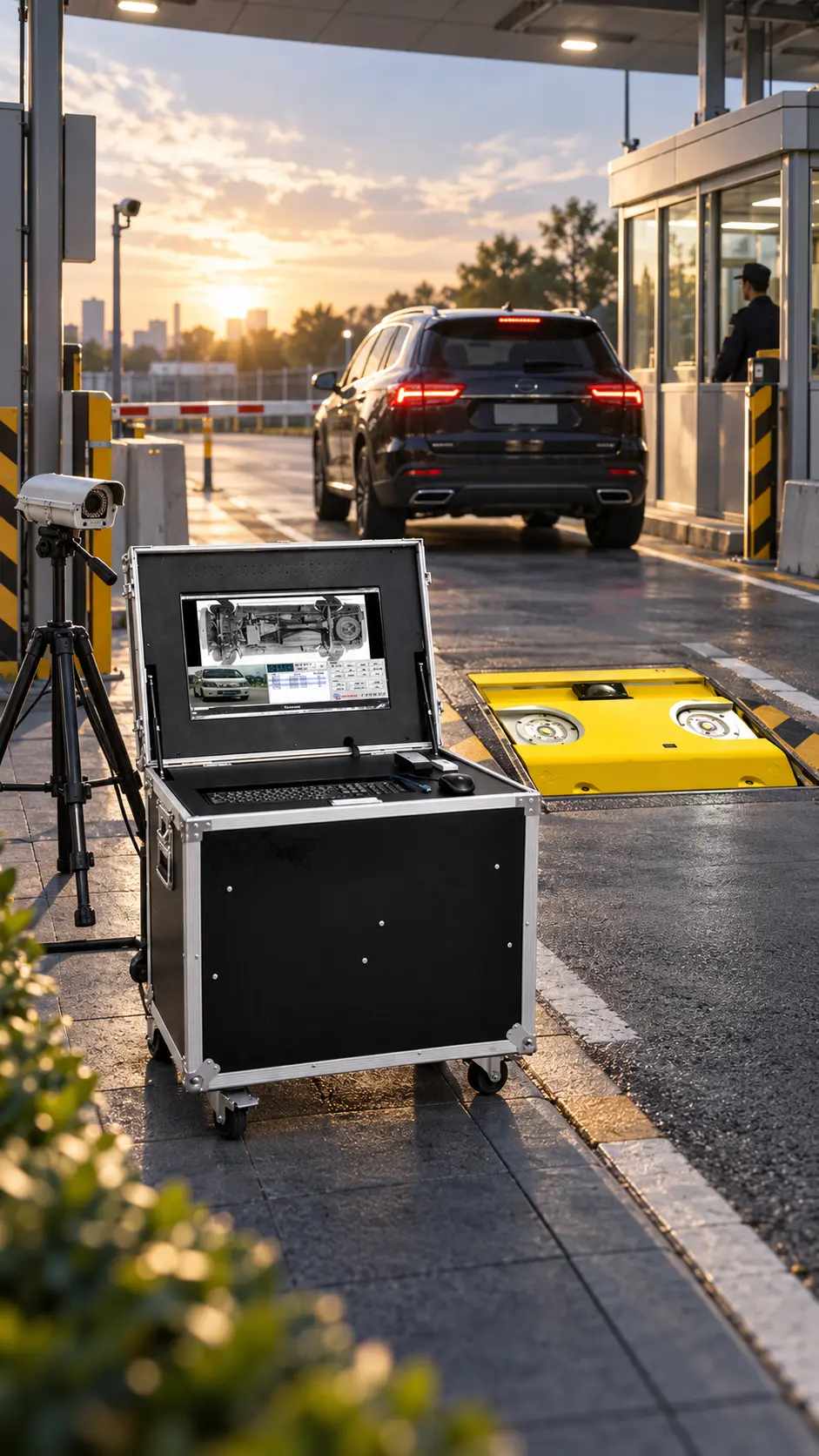

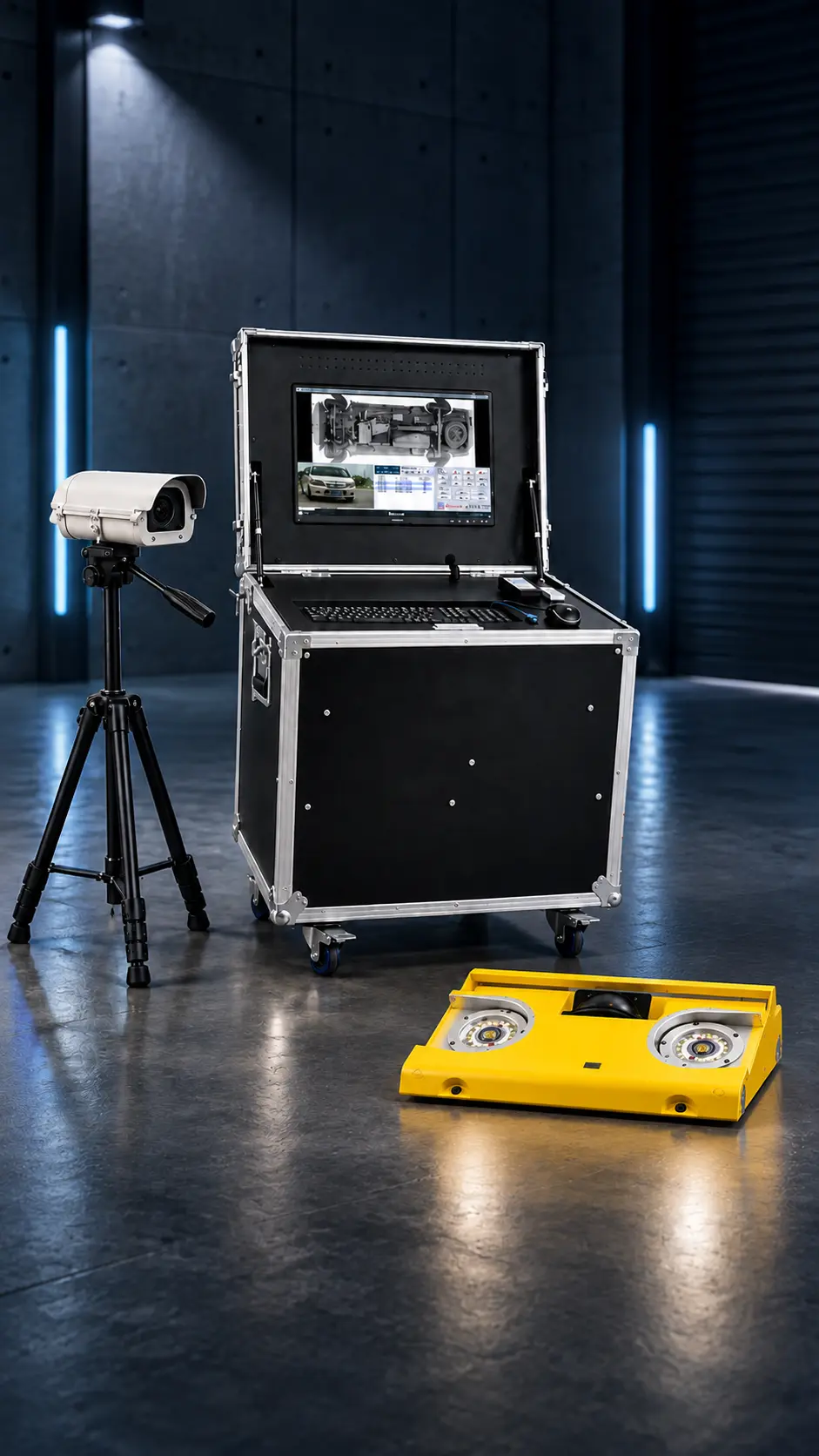

All components can be stored inside a cabinet with wheels, making transportation and deployment easier. When a vehicle passes over the scanner, the system quickly generates a high-definition image of the vehicle undercarriage and records it on the computer.
This allows operators to identify forbidden or suspicious objects attached to the underside of vehicles and improves the efficiency and accuracy of security inspections.
* Kindly Note: The product can only be used for temporary
inspection and cannot be used under the rain.

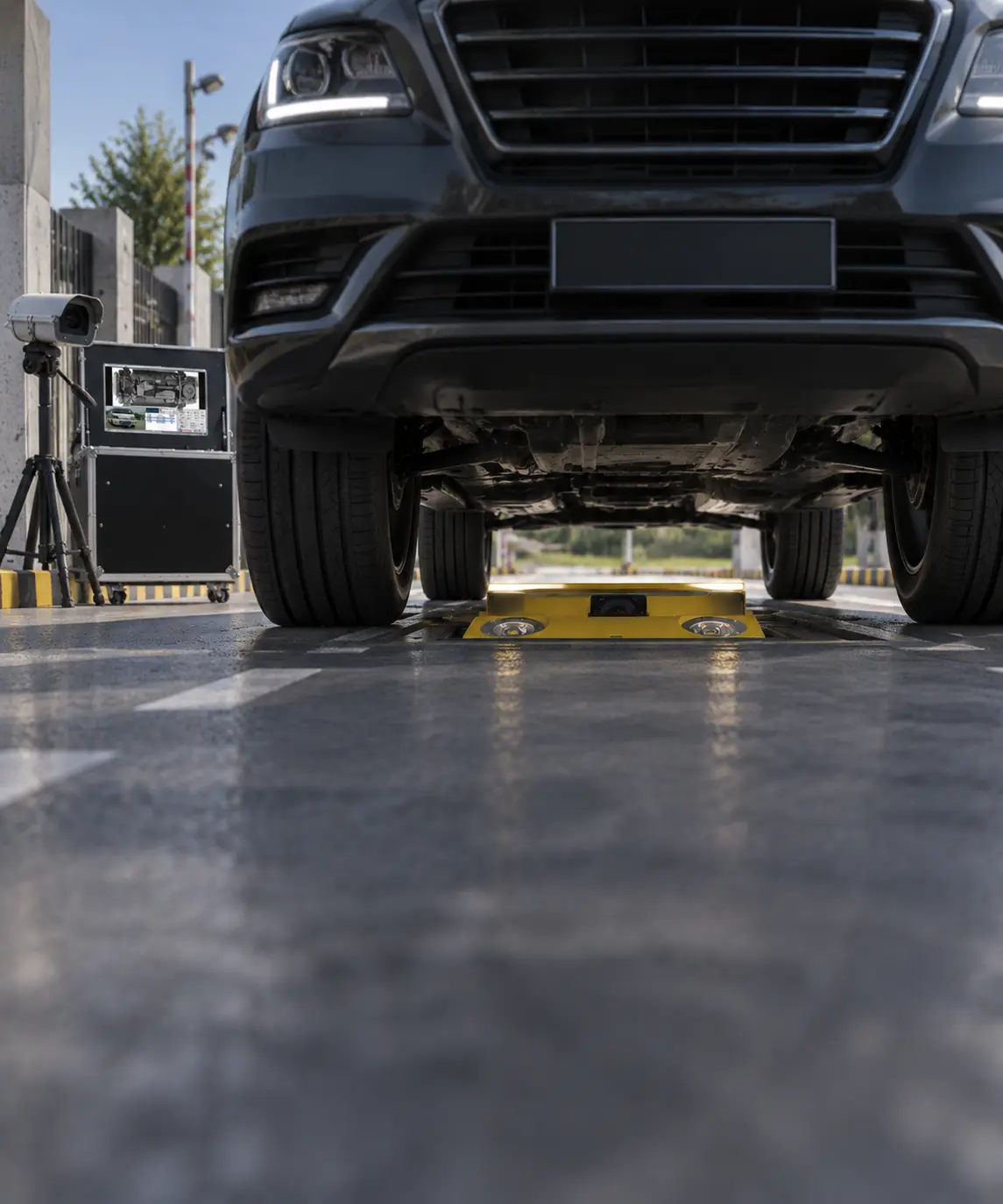

Scanner
Built-in high-speed line-scan CCD camera that dynamically
scans the undercarriage of passing vehicles.
Operator Terminal
Advanced image processing technology provides several
functions to help operators identify forbidden objects
through a user-friendly interface.
Surveillance Camera
Records the scanning process and captures vehicle images.
Images and videos can be stored together with the
corresponding undercarriage image.
Optional LPR camera can also be used.
| Technology | High-Speed Line-Scan CCD Dynamic Imaging |
| Image Resolution | 12000 × 7500 (20 MP) |
| Scan Speed | 1–60 km/h (Recommended ≤ 30 km/h) |
| Imaging Time | Real Time |
| Maximum Scan Rate | 18 kHz |
| Effective Field of View (FOV) | ≥ 170° |
| Load Bearing | ≥ 20T |
| Vehicle Ground Clearance | 80–800 mm |
| Vehicle Width Limit | ≤ 4500 mm |
| Vehicle Length Limit | No Limit |
| Scanner Height Above Ground | 78 mm |
| Scanner Shell Material | Aluminum Alloy |
| Scan Direction | Single-direction Scanning |
| Scanner Weight | 28 kg |
| Scanner Dimensions | 450 × 400 × 78 mm |
| Fill Light | 2 LED Lights |
| Trigger | IR Sensor |
| Image Format | BMP / JPEG |
| Surveillance Camera | 2MP HD Camera |
| License Plate Recognition | Optional (E-LPRC500) |
| Main Cable | 10 meters |
| Gross Weight | 95 kg |
| Net Weight | 52 kg |
| Dimensions | 670 × 550 × 740 mm |
| Packaging Dimensions | 850 × 650 × 970 mm |
| Operating System | Windows 7 |
| Processor | Intel Core i5-3570 |
| RAM | 4 GB |
| Hard Drive | 1 TB HDD |
| Maximum Storage | Up to 200,000 Scanned Images |
| Monitor | 24″ Color LED Screen (1920 × 1080) |
| System Power | 220 VAC ±10% 50/60Hz 110 VAC ±10% 50/60Hz |
| Operating Voltage | DC 24V |
| Power Consumption | ≤ 500W |
| Operating Temperature | -20°C to +60°C |
| Application Environment | Indoor / Outdoor |
