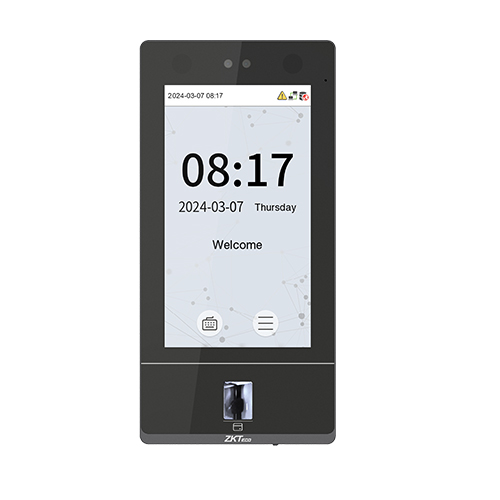

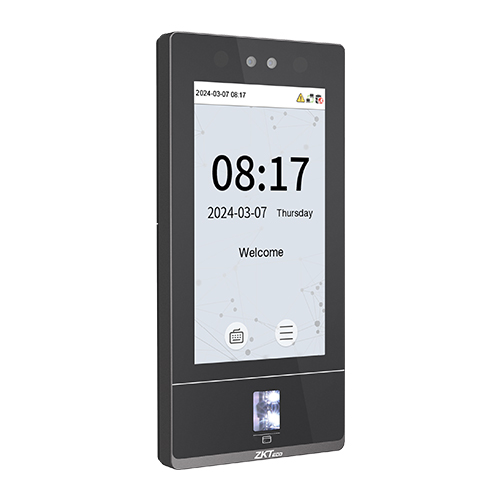

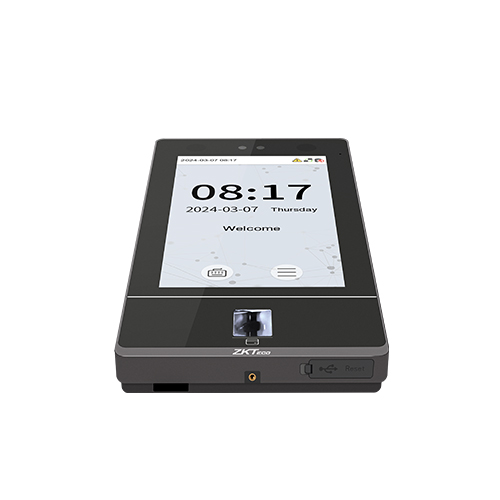

SenseFace 7 Series adopts the latest intelligent engineering facial authentication and in-glass fingerprint technology. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and video attacks which offering secure biometric authentication. SenseFace 7 Series is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0). Besides, SenseFace 7 Series supports multiple communication protocols, Its firmware has AC push and can convert to TA push and it is compatible with various AC or TA software. It can change to BEST protocol to link with ZKBio Zlink (AC module).
Comprehensive and stable software
Comprehensive and stable software
Comprehensive after-sales service coverage
| Model | SenseFace 7A SenseFace 7B |
| Display | 7″@ TFT Color Touch LED Screen (600*1024) |
| Camera | WDR Binocular Camera @ 1MP |
| Operation System | Linux |
| Hardware | CPU: Dual Core@1GHz RAM: 512MB; ROM: 8GB Speaker: 8 ohm@1 W Microphone: *1 (Sensitivity: -32dB / Omni-directional / Signal-to-Noise Ratio: -32dB / Impedance: 2.2kΩ) Supplement Light: No Fingerprint Sensor: In-Glass Fingerprint (Z-ID) (SenseFace 7A) |
| Authentication Method | SenseFace 7A: Fingerprint / Face / Card / Password (Virtual Keypad) SenseFace 7B: Face / Card / Password (Virtual Keypad) |
| Fingerprint Template Capacity | SenseFace 7A: 10,000 (1:N) (Standard) SenseFace 7B: / |
| Face Templates Capacity | 10,000 (1:N) |
| Card Capacity | 50,000 (1:N) (Standard) |
| User Capacity | 50,000 (1:N) (Standard) |
| Transaction Capacity | 300,000 (1:N) |
| Max. User Password Length | 8 Digits |
| Biometric Verification Speed | SenseFace 7A: less than 0.5 sec (Fingerprint); less than 0.35 sec (Facial Authentication) SenseFace 7B: less than 0.35 sec (Facial Authentication) |
| Touchless Biometric Recognition Distance | 30cm to 200cm (Facial Authentication) |
| False Acceptance Rate (FAR) % | SenseFace 7A: FAR ≤ 0.01% (Visible Light Facial Authentication); FAR ≤ 0.0001% (Fingerprint) SenseFace 7B: FAR ≤ 0.01% (Visible Light Facial Authentication) |
| False Rejection Rate (FRR) % | SenseFace 7A: FRR ≤ 0.02% (Visible Light Facial Authentication); FRR ≤ 0.01% (Fingerprint) SenseFace 7B: FRR ≤ 0.02% (Visible Light Facial Authentication) |
| Biometric Algorithm | SenseFace 7A: ZKFace V4.0 ZKFingerprint V13.0 (Standard) / V10.0 (Optional) SenseFace 7B: ZKFace V4.0 |
| Card Type | ID Card @ 125 kHz (Standard) IC Card @ 13.56 MHz (Optional) |
| Communication | TCP/IP*1 Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional) Wiegand (Input or Output)*1 RS485: ZKTeco RS485*1 USB: Type A (USB Drive Only)*1 Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1 |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input) |
| Optional Functions | IC Card, Wi-Fi, Wireless Doorbell |
| Access Control Interface | RS485 (RS485 Card Reader / Biometric Reader) |
| Video Intercom | Video Intercom(ZKTeco Private Protocol via TCP/lP) Support Devices: Standalone Terminal: SenseFace Series; Indoor Monitor: VT07-B01, VT07-B01-WVideo Intercom (Standard SIP Protocol) Support Devices: Standalone Terminal: SenseFace series; Indoor Monitor: VT07-B22L, VT07-B26L-W; Software: ZKBio CVSecurity, BioTalk Pro; Mobile App: ZKBio Zlink, ZKBio Zexus |
| Net Weight | 0.622 Kg |
| Power Supply | DC 12V 3A (Optional) |
| Operating Temperature | -5°C to 45°C |
| Supported Software | On-Premise Software: ZKBio CVSecurity (AC PUSH) & ZKBio Time (TA PUSH) Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App) |

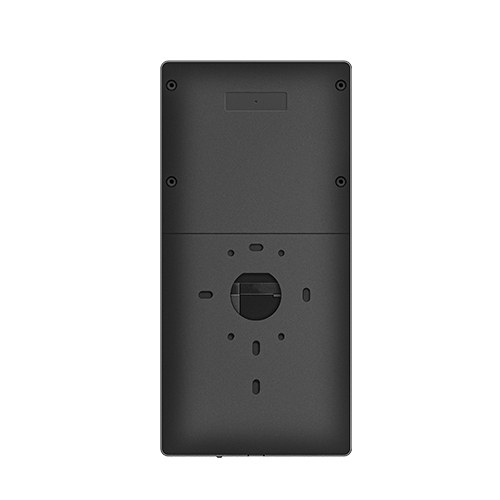

| Installation | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box) |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | SenseFace 7A: 238mm * 115mm * 22.3mm (L*W*H) SenseFace 7B: 214mm * 115mm * 22.3mm (L*W*H) |
| Ingress Protection Rating | IP65 (waterproof and dustproof ) |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
