JS-DZ005

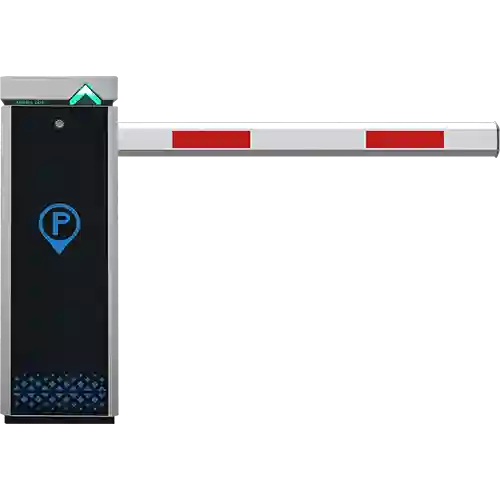

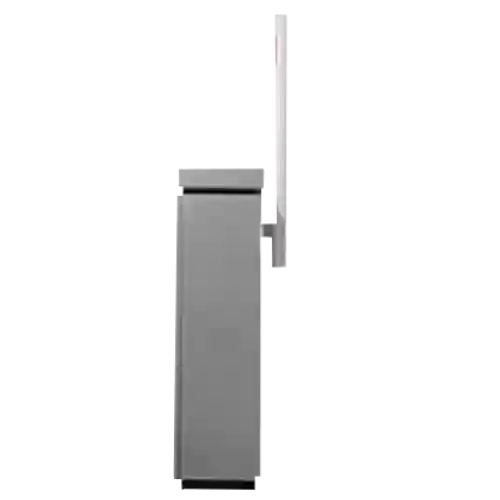

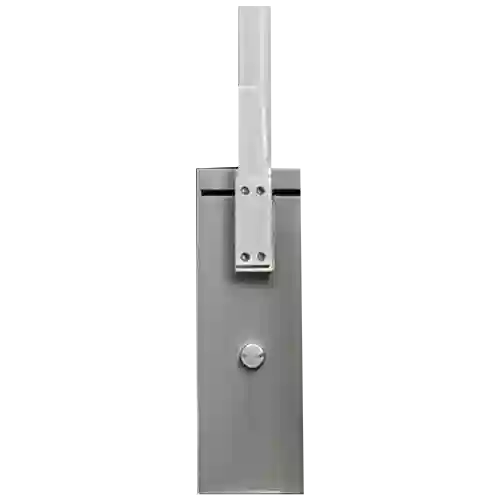

Karsun DZ series boom Barrier gate is durable, accurate, flexible and safe. It assembles with aluminum
alloy octagonal beam with the Max. Length of 6m, gate open/close time is 0.9s/1.5s/3s optional.
Adopts 2nd generation DC brush-less mechanism, which merits for compact in structure, enhanced
rigidity, and convenient for maintenance and operation.
When the brake lever is in the horizontal or vertical state, the movement structure is completely
self-locking, which can effectively protect the reducer from external impact.
Compared with ordinary barrier gate mechanism, our failure rate can be reduced by about 20%

Share the Website to：

Copy Link to Share

Model No.	DZ0023
Framework Material	Cold-roll sheet, with color paint, full body 1.5mm, IP54 level
Beam	Aluminum alloy
Motor	260W DC brush-less motor
Mechanical Structure	Adjustable (left or right)
Dimension	330 × 250 × 1020mm
Operating Speed	0.9s / 1.5s / 3s when starting up the arm
Weight	55 KG
Case Thickness	1.5mm
Input Interface	Photo cell, loop detector, parking system
Input	12V relay signal or Pulse Wide > 100MS
Power Supply	AC220V/110V, 50/60Hz
Working Temperature	-40°C to +85°C
Relative Humidity	≥90%
MCBF	5 million time
Push Button	Support
Remote Control	Two button remote transmitter, Distance ≤ 30m
Optional Accessories	Loop detector; IR photo cell
Beam Type	Straight
Max Beam Length	4M \| 6M
Opening/Close Time	1.5S

Features

Anti-smashing function, rebound when encountering obstacles.
Control Board in a Plastic box makes control board waterproof and dust-proof.
All part is made by mold make the barrier gate accurate and stable.
Safety- Loop detector: after vehicle passed the barrier will automatically close once the loop input was triggered.
