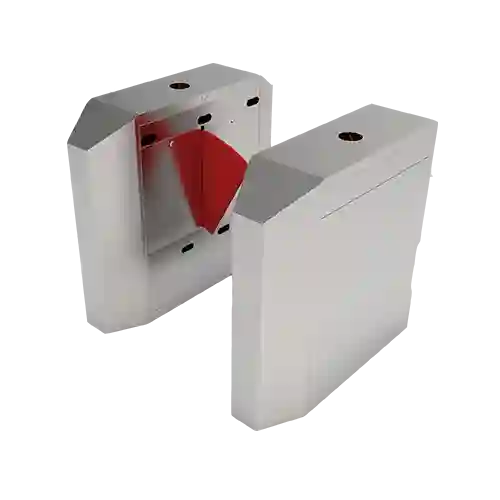

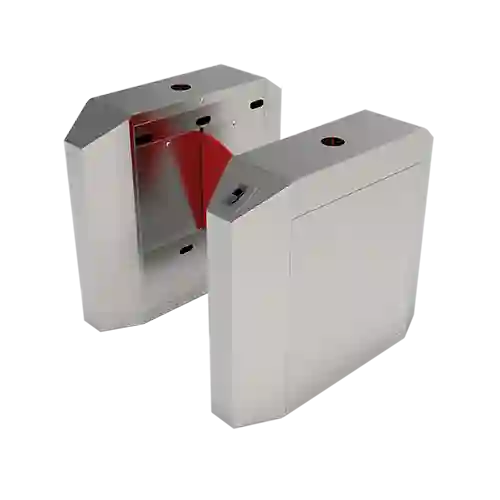

The FBL2000 Pro is a single lane flap barrier turnstile
series designed for smooth and silent operation and
draws very little power. It’s made of stainless steel which
makes FBL2000 Pro highly durable.
FBL2000 Pro barriers are normally held in a locked
position, thus denying access to the secured side. Upon
FBL2000 Pro’s reader (RFID and/or fingerprint) positively
recognizing a user’s valid access card or fingerprint, its
barriers retract upward automatically, thus allowing
users passage to the secured side.
During emergencies the barriers automatically retract
upward, thereby ensuring users FAST unencumbered
exit to safety. A capacitor board for power outage safety
can be installed for retracting the barrier automatically.
FBL2000 Pro provides both security and convenient
space, all in a very durable and elegant compact design.
Comprehensive and stable software
Comprehensive and stable software
Comprehensive after-sales service coverage
| Power requirements | AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
| Working temperature | -28°C~60°C |
| Working humidity | 5%~80% |
| Working environment | Indoor/outdoor (if sheltered) |
| Speed of throughput RFID | Maximum 30/ minute |
| Speed of throughput Fingerprint | Maximum 25/ minute |
| Lane width(mm) | 600 |
| Footprint(mm*mm) | 1200*1150 |
| Dimensions(mm) | L=1150,W=300,H=1000 |
| Dimension with packing(mm) | L=1480,W=420,H=1110 |
| Net weight(kg) | 119 |
| Weight with packing(kg) | 157 |
| LED indicator | Y |
| Cabinet material | SUS304 Stainless Steel |
| Lid material | SUS304 Stainless Steel |
| Barrier material | Acrylic |
| Barrier movement | Retracting |
| Emergency mode | Y |
| Security level | Medium |
| MCBF | 2 million |
Features
Reliability
• SUS304 stainless steel casework ensure long-lasting
durability
• High quality electrical components
Safety Features
• Barriers retract automatically during power outage with
capacitor board installed
• All smooth finish. No exposed screws.
• Ergonomic design makes card and fingerprint
authentication fast & simple for users.
Built-in Reader Integration
• FBL2000 Pro series ships already integrated with our
customers’ preference for either card or fingerprint
access control reader. This greatly reduces installation
time & expense.
• FBL2000 Pro series and associated access control
readers are all factory-tested prior to shipping.
• ZKTeco provides true plug&play turnstiles with the
lowest possible total cost of ownership in the industry.
• Simplification
• LCD on the flap barrier contrl board, easy operation.
